Hectorite

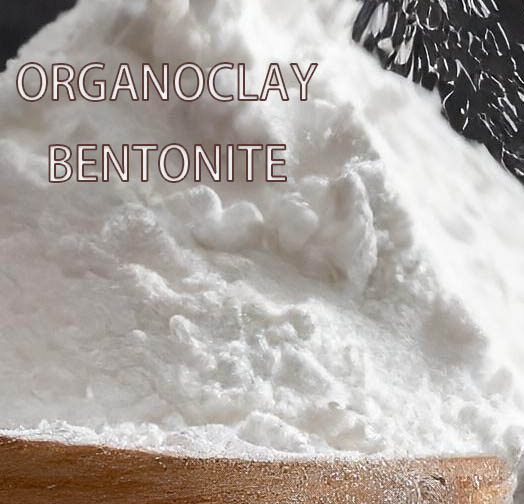

Organoclay | Organophilic Clay CP-2 also named amine treated Bentonite.

Hectorite

In diesel oil based fluids,organophilic clay viscosifier CP-2 are used to increase carrying capacity and suspension properties, providing support for weight materials and improved cutting removal. Organophilic bentonite also aids in filter-cake formation and filtration control.

Properties

Composition                               Organically modified bentonite clay

Physical appearance                Off white to tan free-flowing powder

Moisture content (105℃,2hr)         ≤4%

Particle size (<76μm or 200mesh)    ≥95%

Specific Gravity                                    1.6-1.8

Advantages

Effective viscosifier and gellant

Aids control of fluid loss to the formation

Increases emulsion stability

Improves cuttings carrying and hole cleaning capacity

Suspends weighting materials and other solids

Confers temperature stability to the fluid

Application

Base oil:

Diesel Oils

Crude Oils

Mineral Oils

Synthetic Oil

Viscosifying drilling Fluids:

Oil based drilling fluids

Invert emulsion fluids

Workover fluids

Completion fluids

Casing packs

Packer fluids

Spotting fluids

Package

Organoclay | Organophilic Clay CP-2 is packed in 50lb(22.7kg) or 25kg/bag or customized,multi-wall paper sacks or Kraft paper bag with PE liner or customized.

Storage

CP-2 Store in a dry, well-ventilated area with temperature of 0℃-30℃.  Keep container closed. The quality guarantee period is 24 months.

Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control. All products are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

Internet address: https://www.rheologicaladditive.com/ and email address: [email protected]

Whatsapp / Wechat: +86-13185071071

Hectorite

Hectorite

Hectorite is a rather specialized type of montmorillonite that is very rich in trace elements.

In addition to the applications mentioned above, lithium montmorillonite can be used in the ceramics and glass manufacturing industries as well as some pet food additives and the pharmaceutical industry.

We would like to focus on the use of lithium montmorillonite in oilfield drilling fluids. In drilling fluids, lithium montmorillonite is an advanced thickener, rheology aid, temperature stabilizer, and anti-leakage agent.

In the conventional drilling process, drilling fluid is easily lost through some gaps or crevices, resulting in the stability of the well wall being affected. Lithium montmorillonite can maintain the stability of the well wall. Minimize the loss of drilling fluid.

In the process of drilling, lithium montmorillonite can form a protective film between the drill bit and the well wall, which reduces the wear of the drill bit to a certain extent, but also greatly extends the service life of the drill bit.

Most of our bentonite raw ore is used sodium bentonite.

Many users, especially oilfield drilling fluid users, will ask us lithium montmorillonite as raw material for organic bentonite, we would like to make a special note of the fact that in the process of application, there is no great difference in the performance of the presentation, as an independent chemical additives, it pays more attention to a formula to match the nature of the formula, it is not a single product of the measurement.

The thickening of lithium montmorillonite into organic bentonite is a key indicator, because the viscosity of the process of drilling can help the entire rock chip carrying capacity, can make the drill bit and rock separation, as well as bring the drill cuttings from the bottom of the well to the surface.

The ability to control rheology also makes drilling much more efficient, with significantly higher slurry rates. For environmental protection lithium montmorillonite is more favored.

We welcome you to ask us for organic bentonite made from lithium montmorillonite . We are also willing to provide free samples for you to test. And we provide more technical information before testing.

Please contact us now. We will send you our sample booklet and product specification by email.
