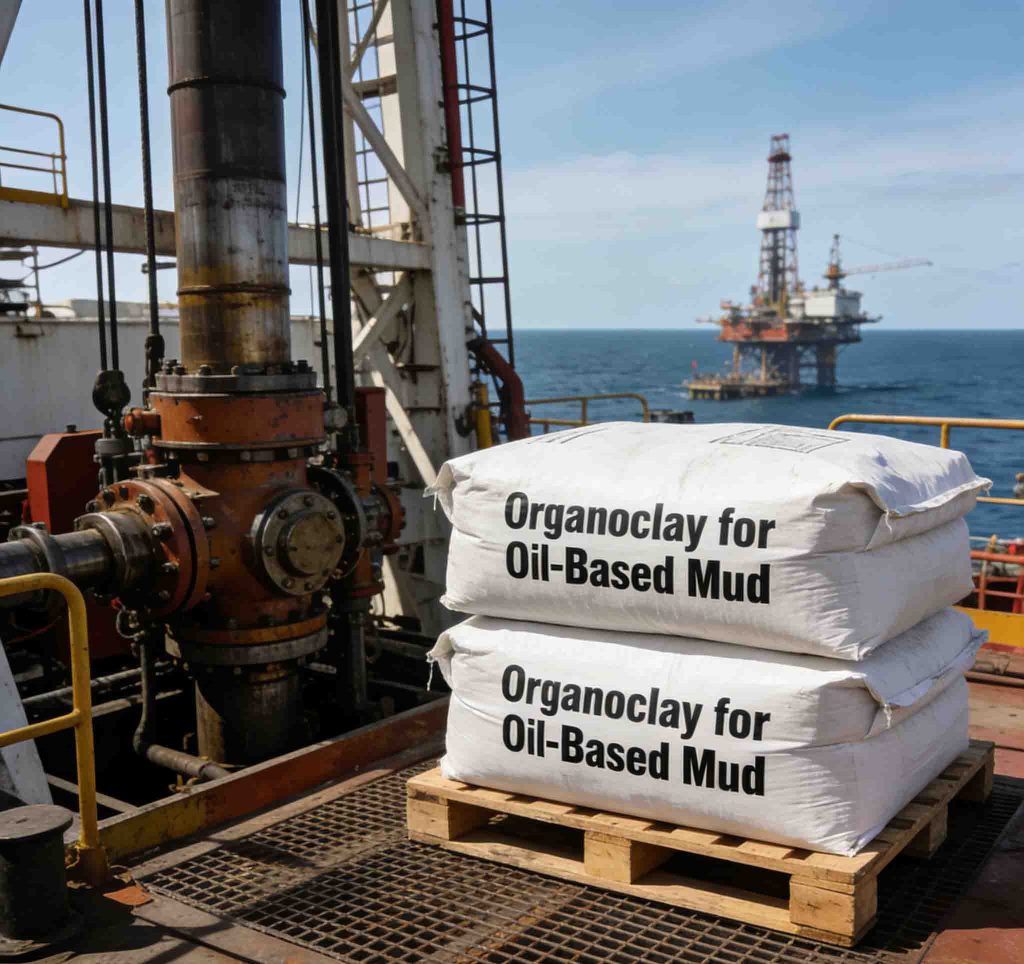

Rheology Additives for Oilfield Drilling: Enhance Suspension Performance & Ensure Drilling Safety
The application of organic bentonite in drilling fluids effectively enhances suspension properties, which directly determines drilling safety and production capacity. Poor suspension performance can adversely affect cuttings settlement, potentially leading to wellbore instability or weighting agent sinking.
Our Rheology Additives for Oilfield Drilling is suitable for specific well types in oilfield drilling, including horizontal wells, deviated wells, deep wells, ultra-deep wells, extended-reach drilling, and formations with salt crust layers.
Rheology Additives for Oilfield Drilling: Enhance Suspension Performance & Ensure Drilling Safety
When selecting our organic bentonite for various drilling fluids, the choice can be based on drilling depth. For example, high-temperature resistant organic bentonite is suitable for deep wells exceeding 3 kilometers.
In oil-based drilling fluids, the specific grade selected also depends on the base oil used. Regarding dosage, we generally adhere to an addition ratio between 0.2% and 5%. Excessive usage may lead to increased pump pressure.
Rheology Additives for Oilfield Drilling: Enhance Suspension Performance & Ensure Drilling Safety
CP-150 Organophilic Clay
Rheology Additives for Oilfield Drilling
Properties
Composition Organic derivative of a montmorillonite clay
Appearance Fine powder, white
Moisture content (105℃,2hr) ≤3.5%
Loss on ignition (1000℃) 29%-32%
Bulk density 0.53g/cm3
Fineness (<74μm, %) ≥98%
Advantages
Composition Organically modified bentonite clay
Appearance Off white to tan finely divided powder,
Moisture content (105℃,2hr) ≤3.5%
Specific Gravity 1.7
Bulk density 0.40~0.60g/cm³
Advantages OF Rheology Additives for Oilfield Drilling
- Effectively suspends weighting materials and other solids
- Maintains suspension over a wide temperature range
- Eliminates need for chemical activators
- Is easy to disperse and rapid yielding
- Suspends weighting materials and other solids
- Maintains suspension over a wide temperature range
Application
CP-150 is a self-activating gallant offering rapid yield development, high gel strengths, and increased efficiency. The unique properties of CP-150 are especially valuable in low-shear mud plant operations and during completion fluid manufacture at the well site
Base oil:
- Diesel Oils
- Mineral Oils
- Synthetic Oil
- Linear and isomerized Alpha Olefins
- Modified vegetable oil
Viscosifying drilling Fluids:
- All oil based drilling fluids
- Invert emulsion fluids
- Workover fluids
- Fracture fluid
Safety
All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co., Ltd.
Package
Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 22.68kg/bag or customized
Storage
CP-150 Store in a dry, well-ventilated area with temperature of 0℃-30℃. Keep container closed. The quality guarantee period is 24 months.
Notice
The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control.
All products are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user.
We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.
